Capacitores de potencia

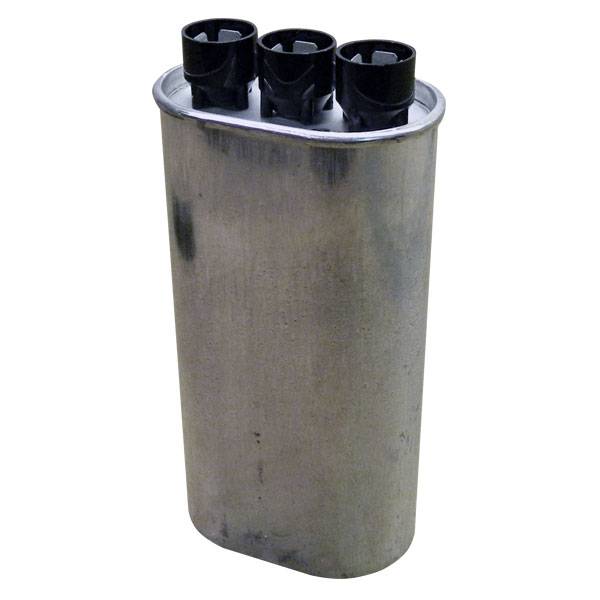

    Power Factor Correction PFC Capacitor Filter Cylindrical High Performance Capacitor INMCAP010

    Código: INMCAP010

    Sobre Pedido 5566037651

    Film Capacitors – Power Factor Correction

    Production introduction – PFC capacitor
    Structure
    Single phase, 3 phases, separated phases or YN
    Single cylinder case or multiply cylinder cases



    Product model classification
    Product model
    BKMJ  Economical square capacitor
    BKMJP  Standard square capacitor
    AKMJG  Filter square high performance capacitor
    BKMJYS  Standard cylindrical capacitor
    AKMJYS  Filter cylindrical high performance capacitor

    Comparison of main relevant parameters of different models of products

    Models

    BKMJ

    BKMJP

    AKMJG

    BKMJYS

    AKMJYS

    Capacity

    deviation

    -5%~10%

    -2%~3%

    -2%~3%

    -2%~3%

    -2%~3%

    Withstand

    voltage between polar

    shells

    ≥3600V

    ≥3600V

    ≥3600V

    ≥3600V

    ≥3600V

    Use

    environment

    -40~60℃

    -40~60℃

    -40~60℃

    -40~60℃

    -40~60℃


    Maximum operating

    voltage of capacitor


    1.1 times of rated voltage

    1.1 times

    1.2

    times

    1.15

    times

    1.2 times


    Maximum operating

    current of capacitor


    1.3 times the rated current

    1.5

    times

    2 times

    1.5

    times

    2 times


    Inrush current capacity at switching moment


    200 times the rated current

    220

    times

    250

    times

    220

    times

    250

    times

    Product features
    The special coating process ensures good capacitor self-healing performance and stability of electrical performance.
    Multiple groups of single shunt capacitors are our patented products. Each group of single capacitors adopts overvoltage separation device, which not only ensures the safety of the product, but also improves the electrical performance and service life of the product due to the use of multiple groups of single elements and a certain gap between the parallel elements.
    The products are made of imported Nordic chemical high gauge particles, which are thin and resistant to high temperature, so as to ensure more stable product performance.

    Specification table


    Part number

    50Hz

    60Hz

    CR

    Dimension （mm）

    Bolt of the bottom

    Packing unit pcs

    Output kvar

    IR A

    Output kvar

    IR A

    µF

    ΦD

    ΦD1

    H

    Rated voltage 450 V AC, 50/60 Hz, delta connection

    AKMJYS-X-X-0.45-5-3

    5.0

    6.4

    6.0

    7.7

    26.2×3

    65

    68
